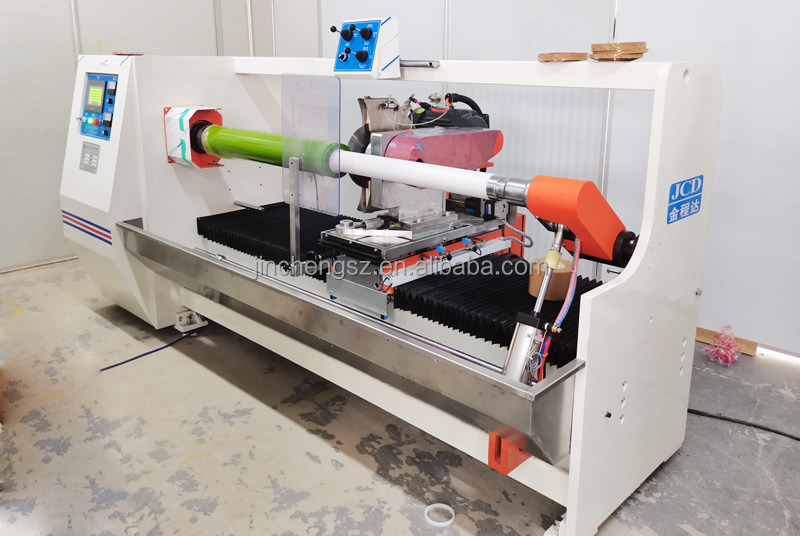

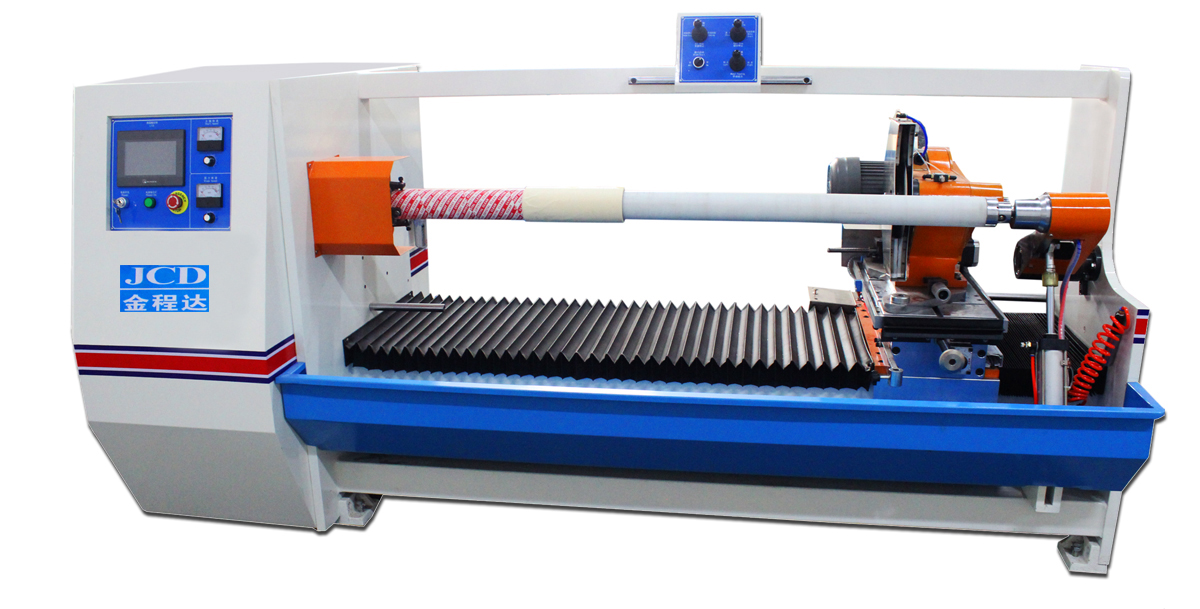

JC-C01 Single shaft automatic cutting machine
This machine is suitable for cutting kinds of adhesive tape, such as the masking tape, bopp tape, double sides tape, foam tape, close tape, VHB tape. And some kinds of coated paper and PE protective film.
l High speed cutting.
l Clean cutting surface.
l Cutting without raw edge.
l High cutting precision: ±0.1mm
Cutting width | 1300mm | 1600mm |
Max. cutting diameter | 300mm | 300mm |
I.D of paper core | 25-76mm | 25-76mm |
Min. cutting width | 1mm | 1mm |
Voltage | 3 phase 380V/50HZ | 3 phase 380V/50HZ |
Power | 10HP | 10HP |
Air | 6kg/cm2 | 6kg/cm2 |
G.W | 1500 KG | 1700 KG |
Machine size | 2750*1200*1300mm | 3050*1200*1300mm |
