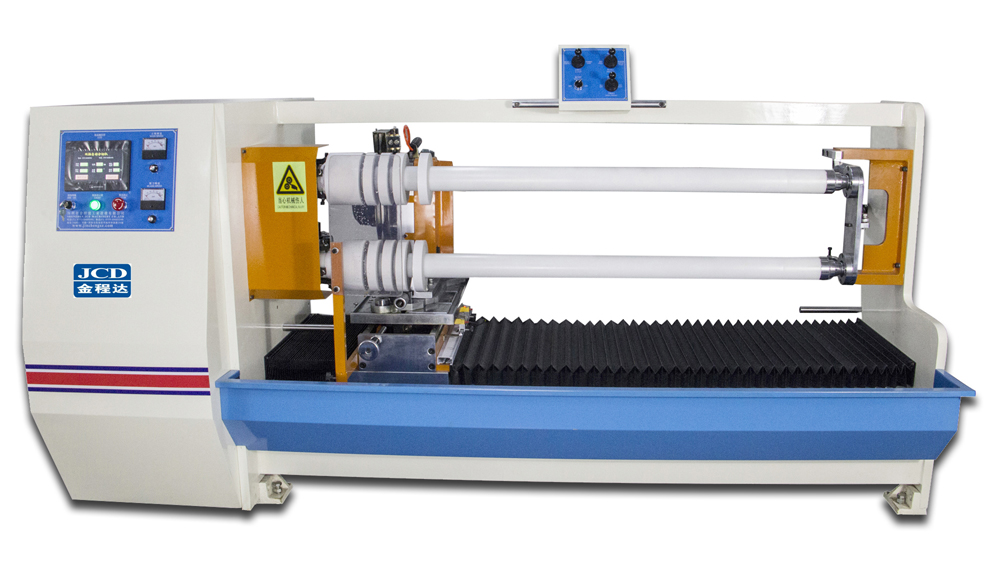

JC-C02 Double shafts automatic cutting machine





This machine is suitable for cutting kinds of adhesive tape, such as the masking tape, bopp tape, double sides tape, foam tape, close tape, VHB tape. And some kinds of coated paper and PE protective film.



l  Clean cutting surface.

l  Cutting without raw edge.
l  High cutting precision: ±0.1mm.
l  High speed and high efficiency. ( cutting 2 rolls together.)



Cutting width

1300mm

1600mm

Max. cutting diameter

200mm

200mm

I.D of paper core

25-76mm

25-76mm

Min. cutting width

1mm

1mm

Voltage

3 phase 380V/50HZ

3 phase 380V/50HZ

Power

10HP

10HP

Air

6kg/cm2

6kg/cm2

G.W

1500 KG

1700 KG

Machine   size

2750*1200*1300mm

3050*1200*1300mm
