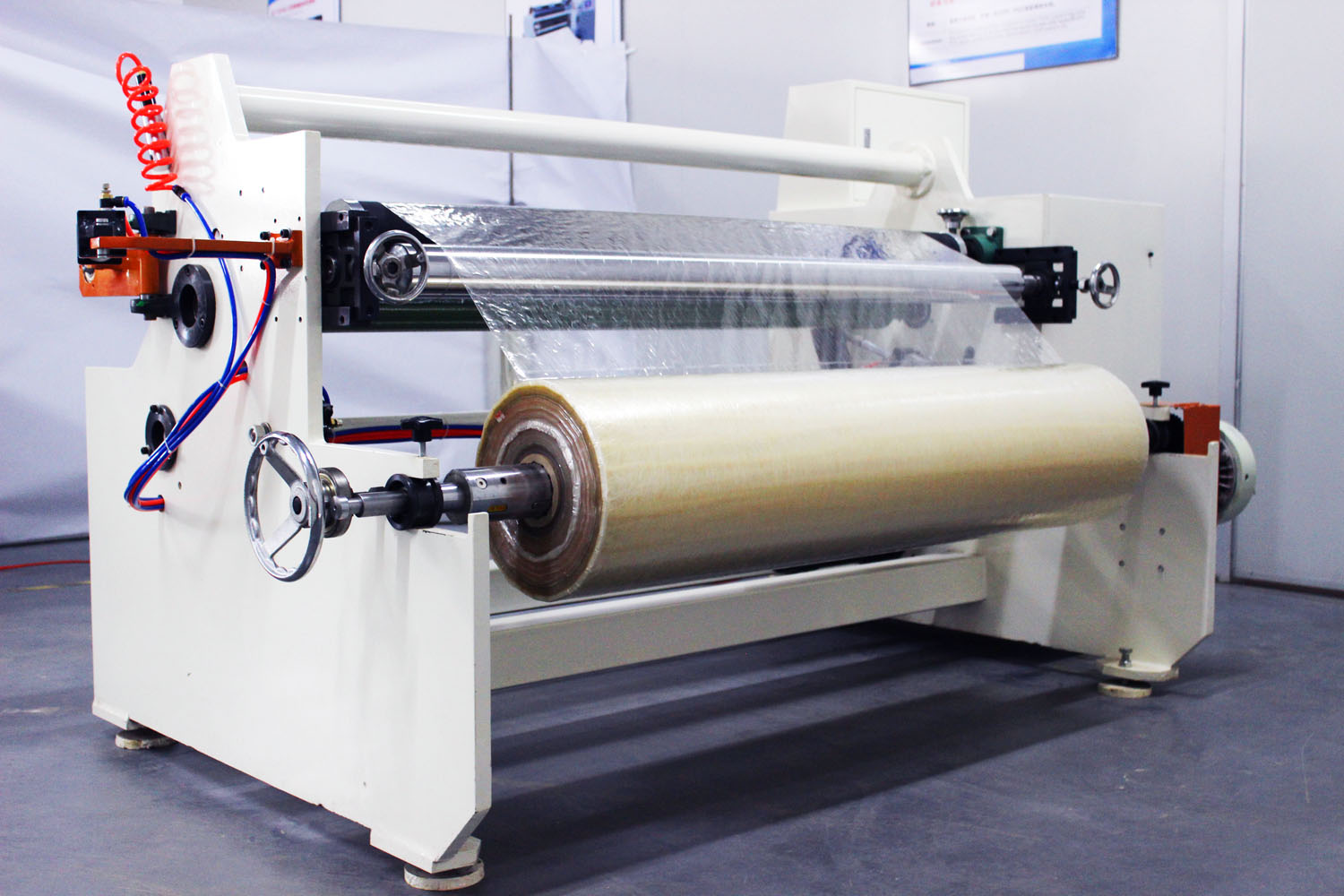

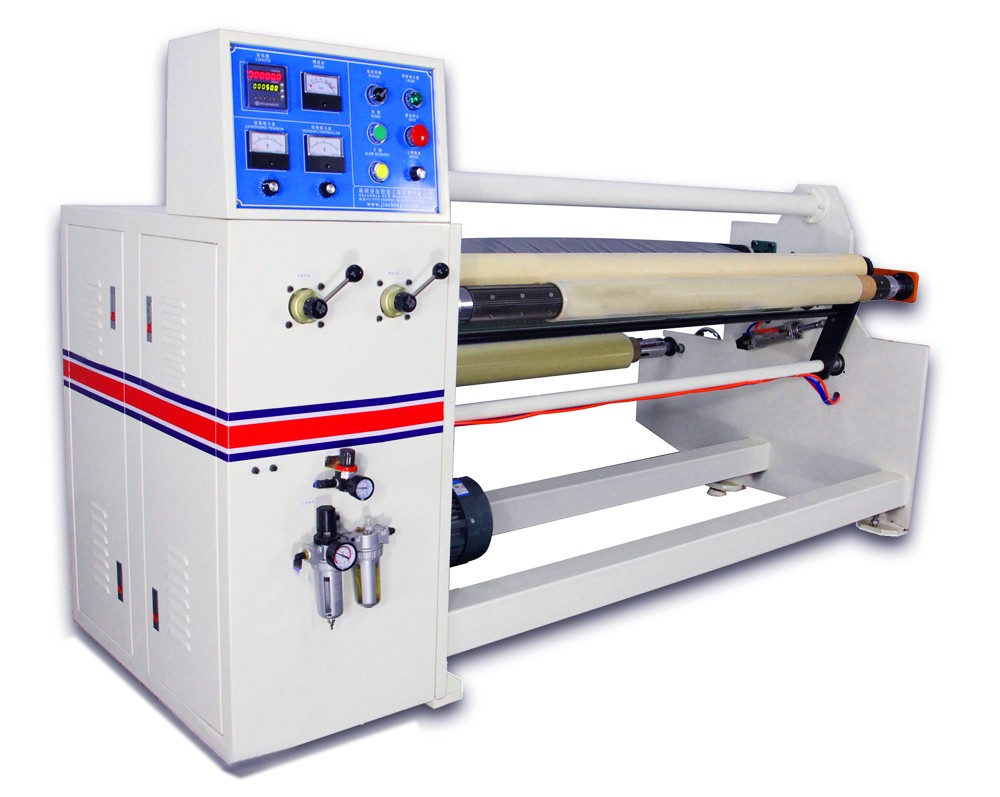

JC-R01 Single shaft adhesive tape jumbo roll rewinding machine





This machine is suitable for rewinding kinds of adhesive tapes jumbo roll.
Such as the masking tape, bopp tape, double sides tape, cloth tape etc.



1. Easy to operate, only need one operator.
2. Economy type machine.
3. High speed rewinding.


Model                                    JC-R01
Valid width1300mm1600mm
Max. unwind diameter800mm800mm
Max. rewind diameter350mm350mm
I.D of paper core25-76mm25-76mm
Machine size2500*1350*1250mm2800*1350*1250mm
G.W1000 KG1200 KG
