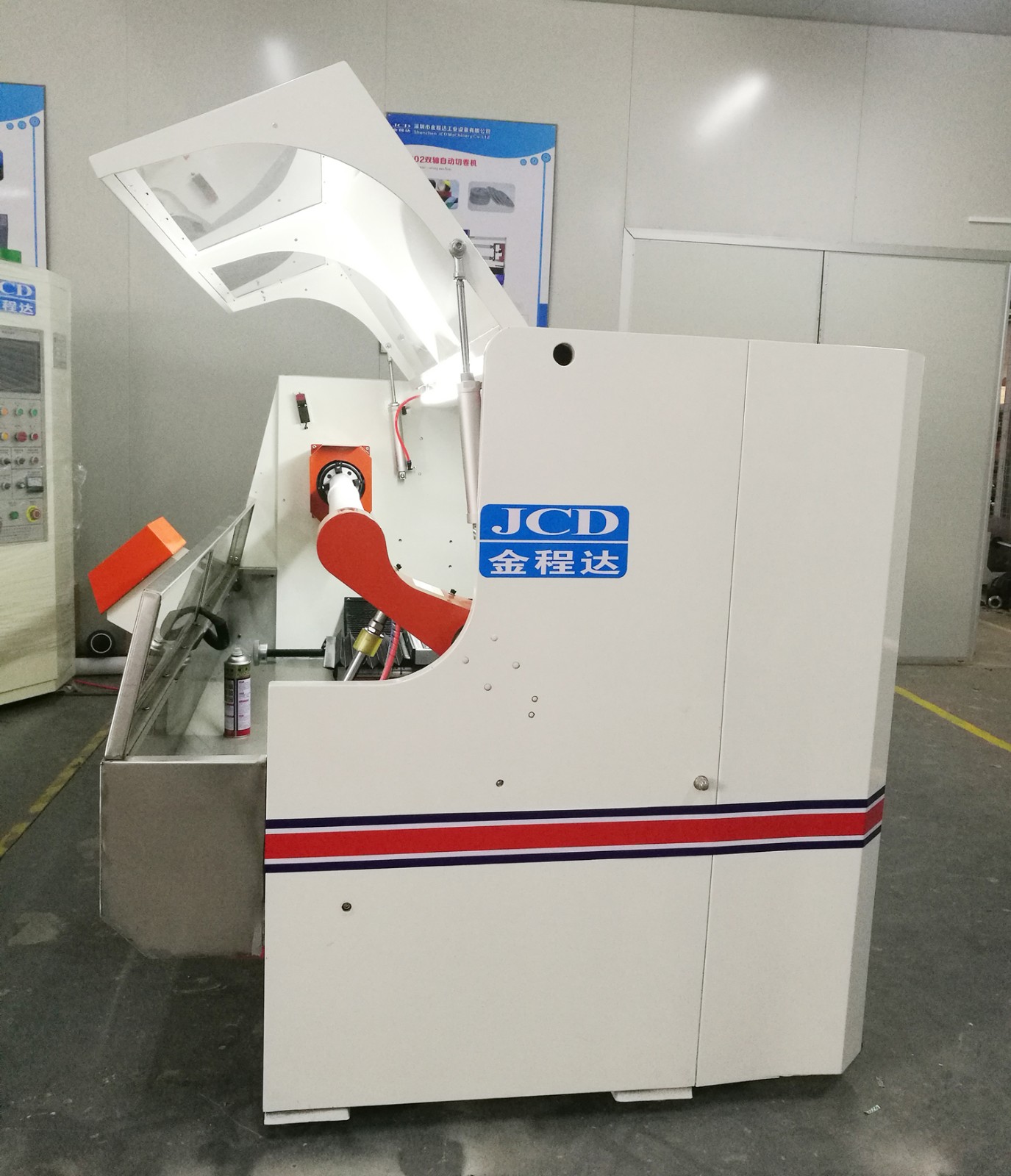

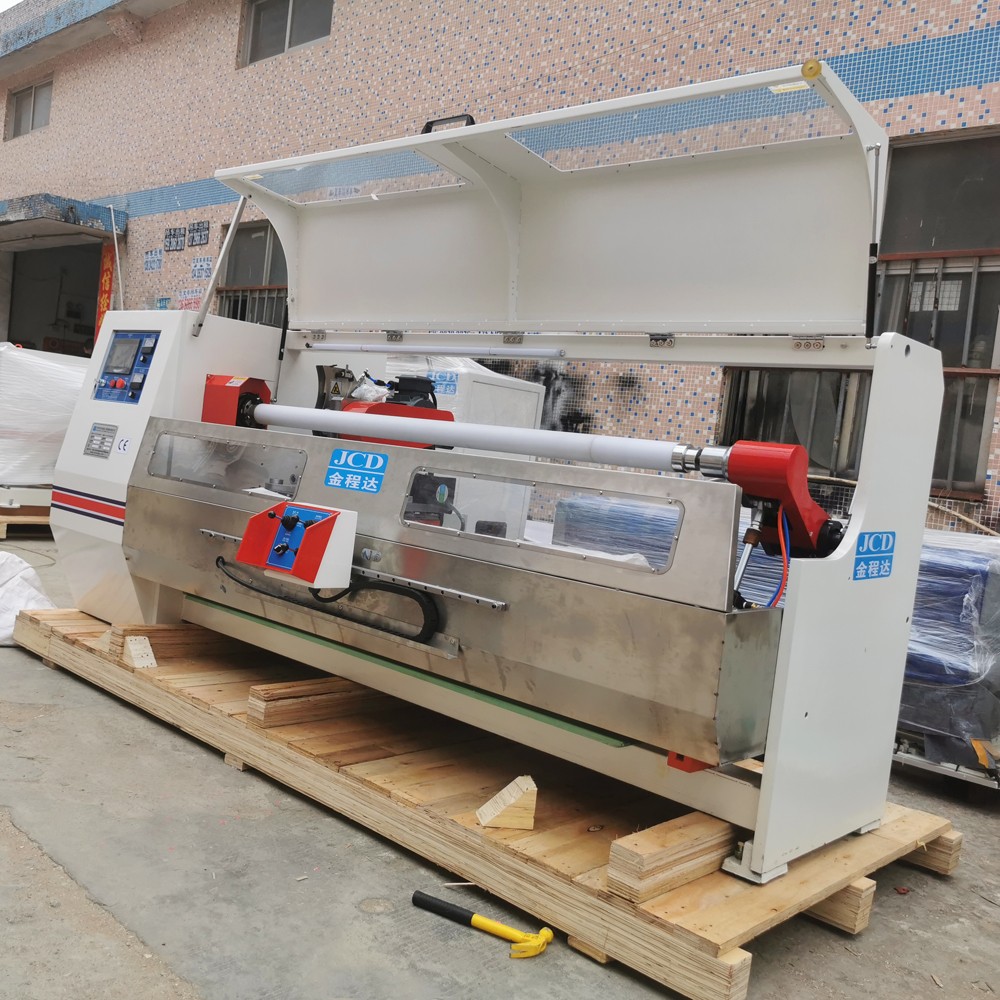

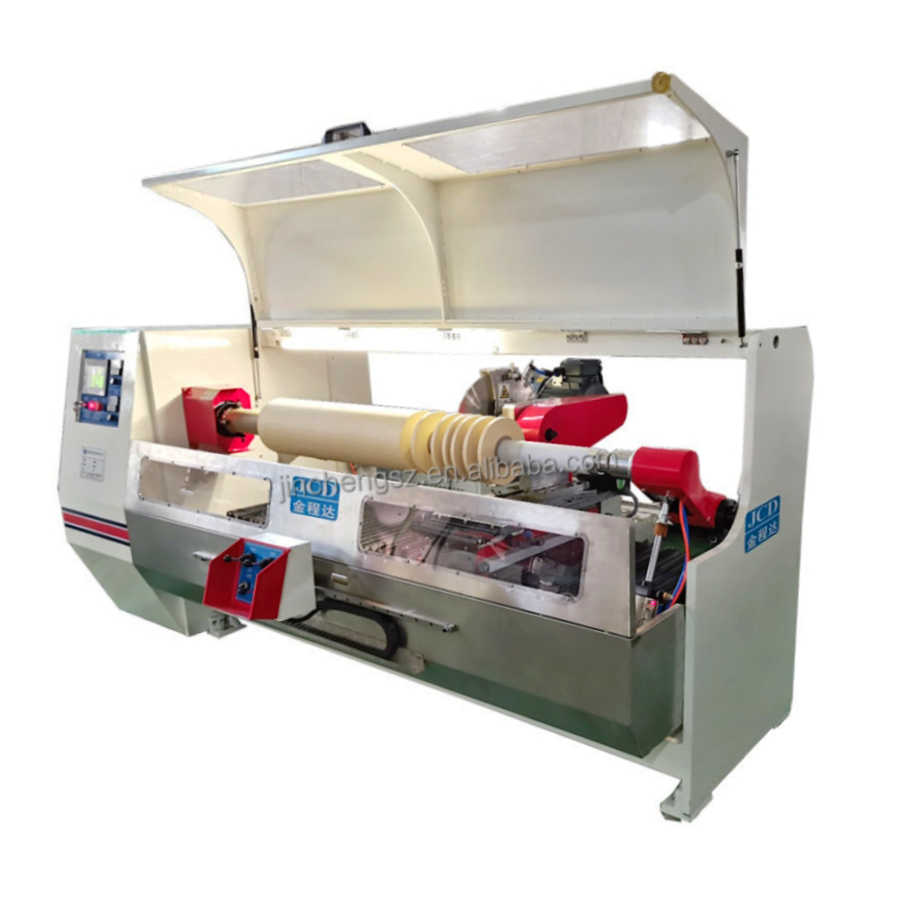

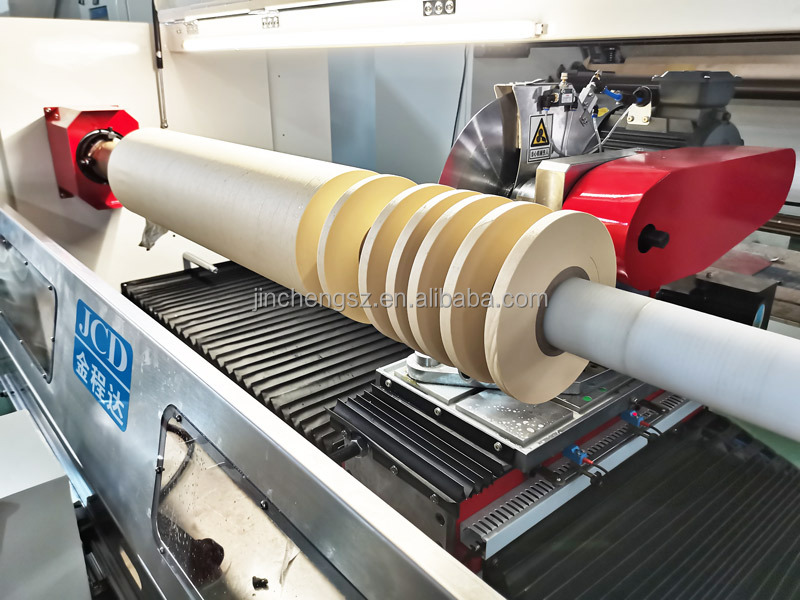

JC-C01 Automatic adhesive tape and protective film roll cutting machine




Function:

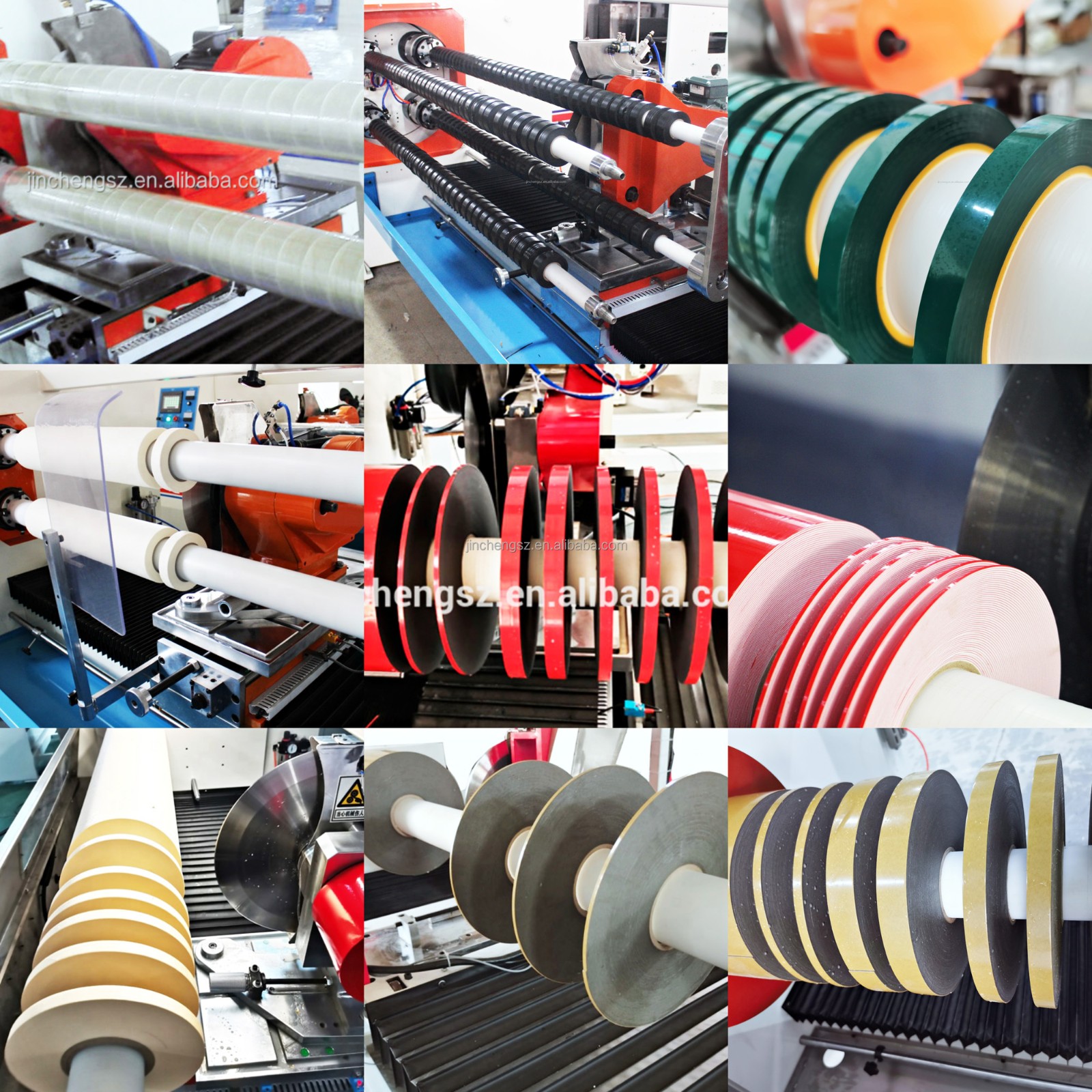

This cutting machine is suitable for cutting kinds of adhesive tapes, protective films, papers, fabric, foilm and non-woven etc.

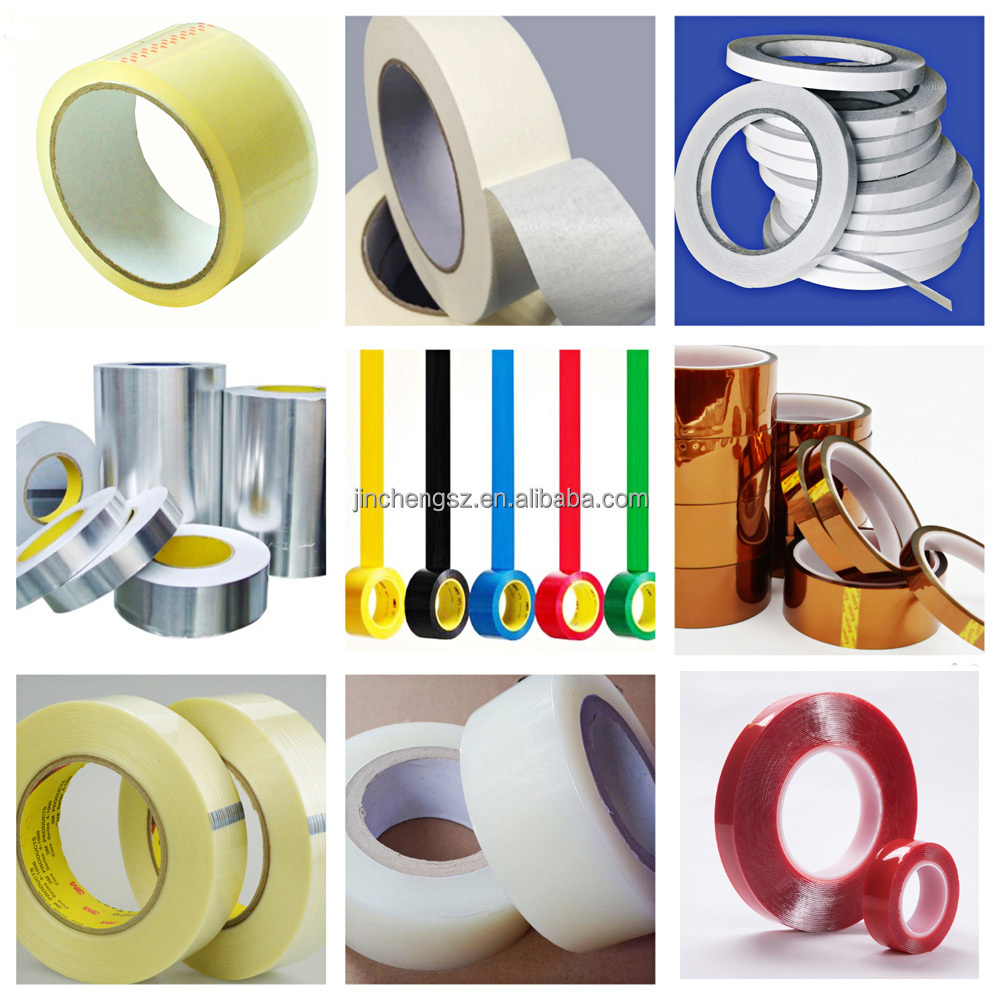

Such as BOPP tape, masking tape, PVC tape, PET Tape, medical tape, protective pe film, aluminum foil, melt-blown fabric etc.

Application:




Technical parameters:

ModelJC-C01
Valid width1300mm / 1600mm
Max.cutting diameter330mm
Suitable core I.D1''~3''
Cutting knifeO.D= 250mm~400mm
Min.cutting width1mm
Cutting tolerance±0.1mm
Voltage3 Phase 380V/50HZ
Power10 HP
Machine size2750x1550x1300mm
G.W1600 KG
