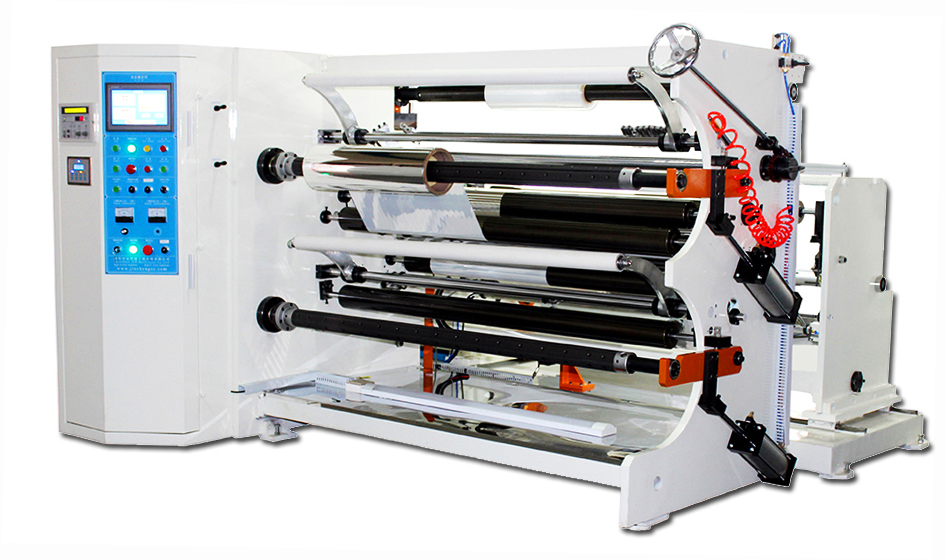

JC-S03C Release film and protective film slitting machine
This machine is suitable for slitting and rewinding kinds of protective film, released film and optical film.
Such as the PET film, diffuser film, BEF, OCA etc.
.Machine can add lamination function.
.Easy and fast to operate.
Model | JC-S03C |
Raw material width | 1000mm/ 1300mm / 1600mm |
Max. unwind diameter | 800mm |
Max. rewind diameter | 500mm |
I.D of paper core | 3''/ 6'' |
Min. slitting width | 20mm |
Slitting knife | Round knife/ Straight knife |
Speed | 0-150m/min |
Machine size(1300mm width) | 3200*2000*1600mm |
G.W | 2500KG |
