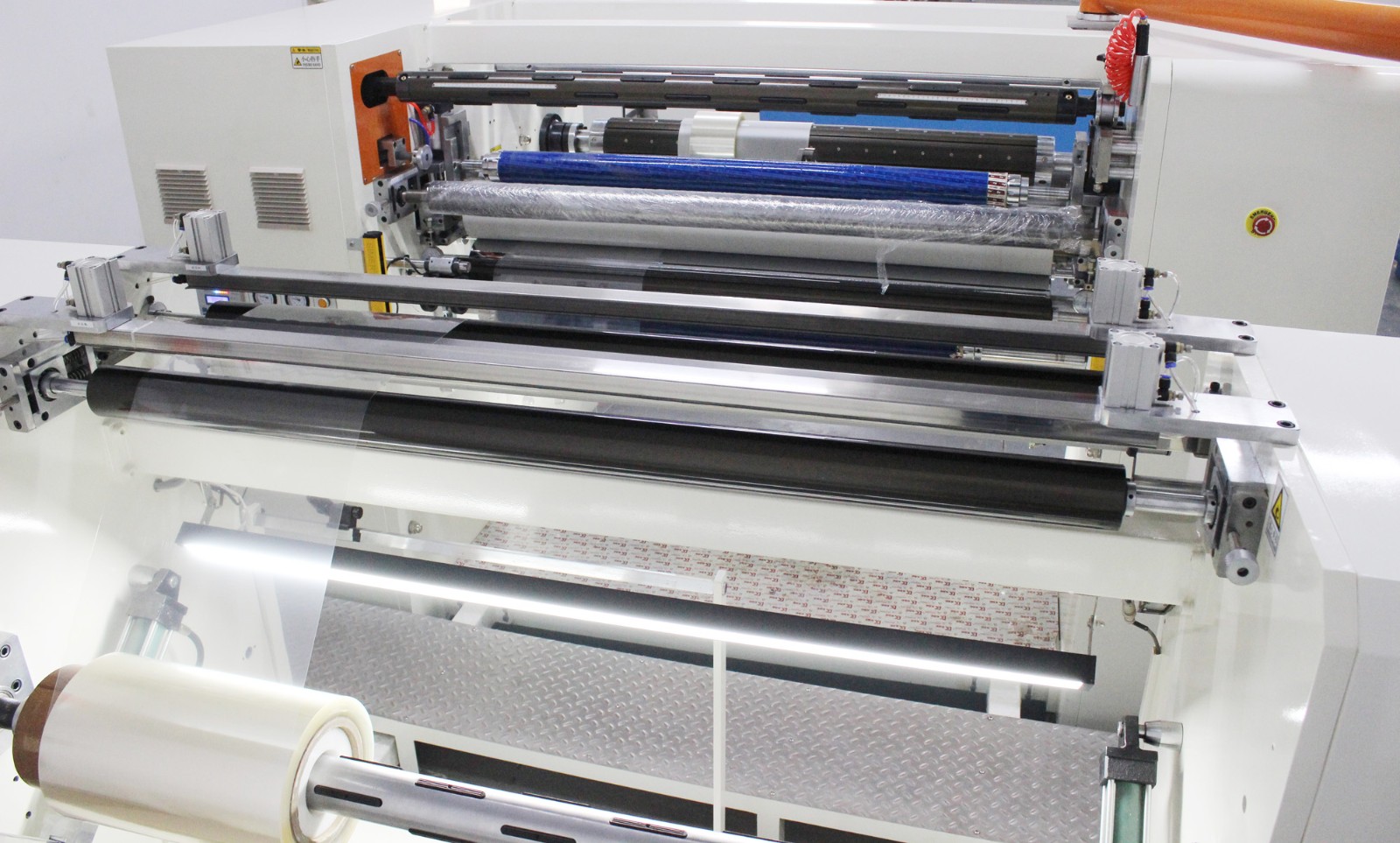

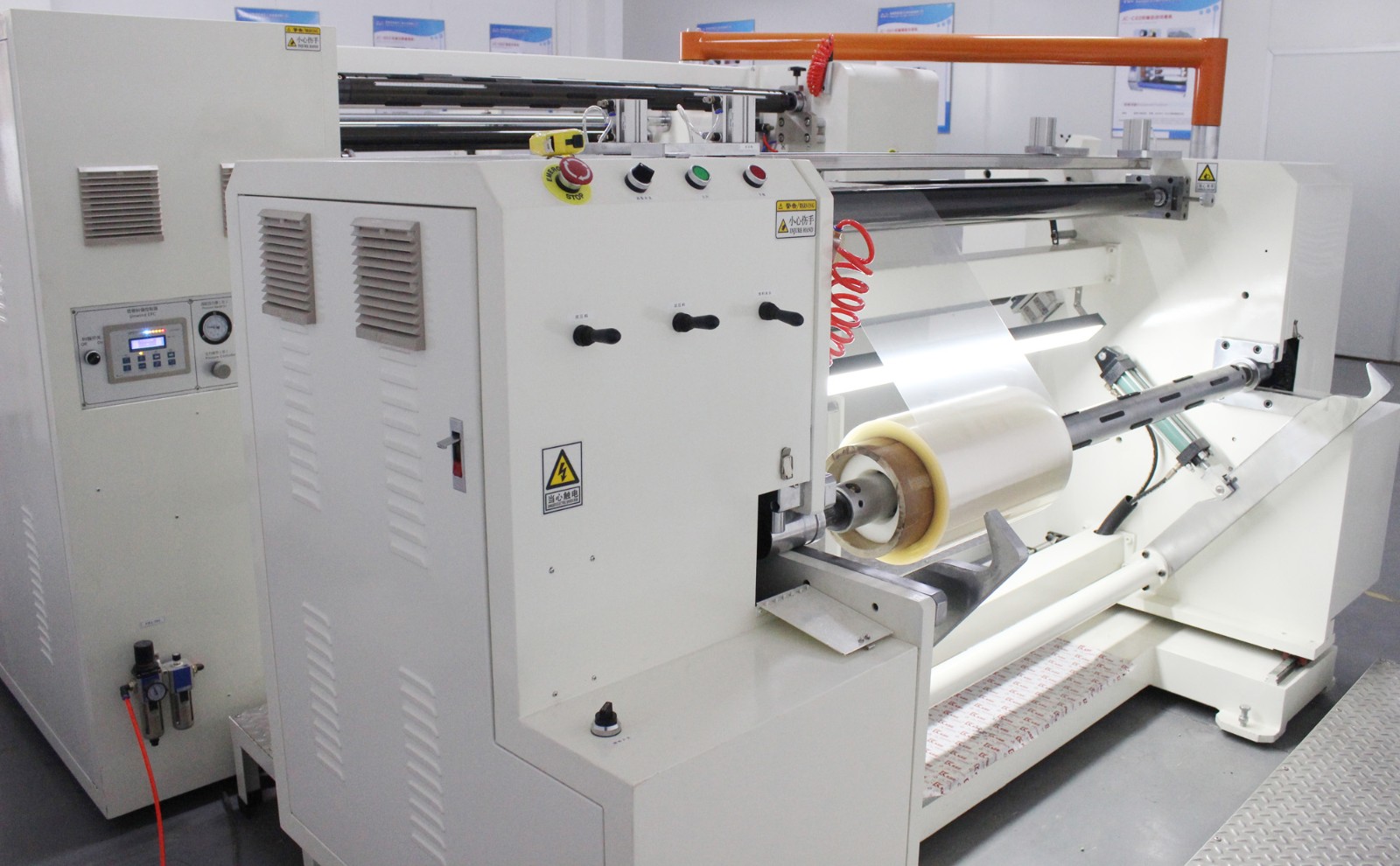

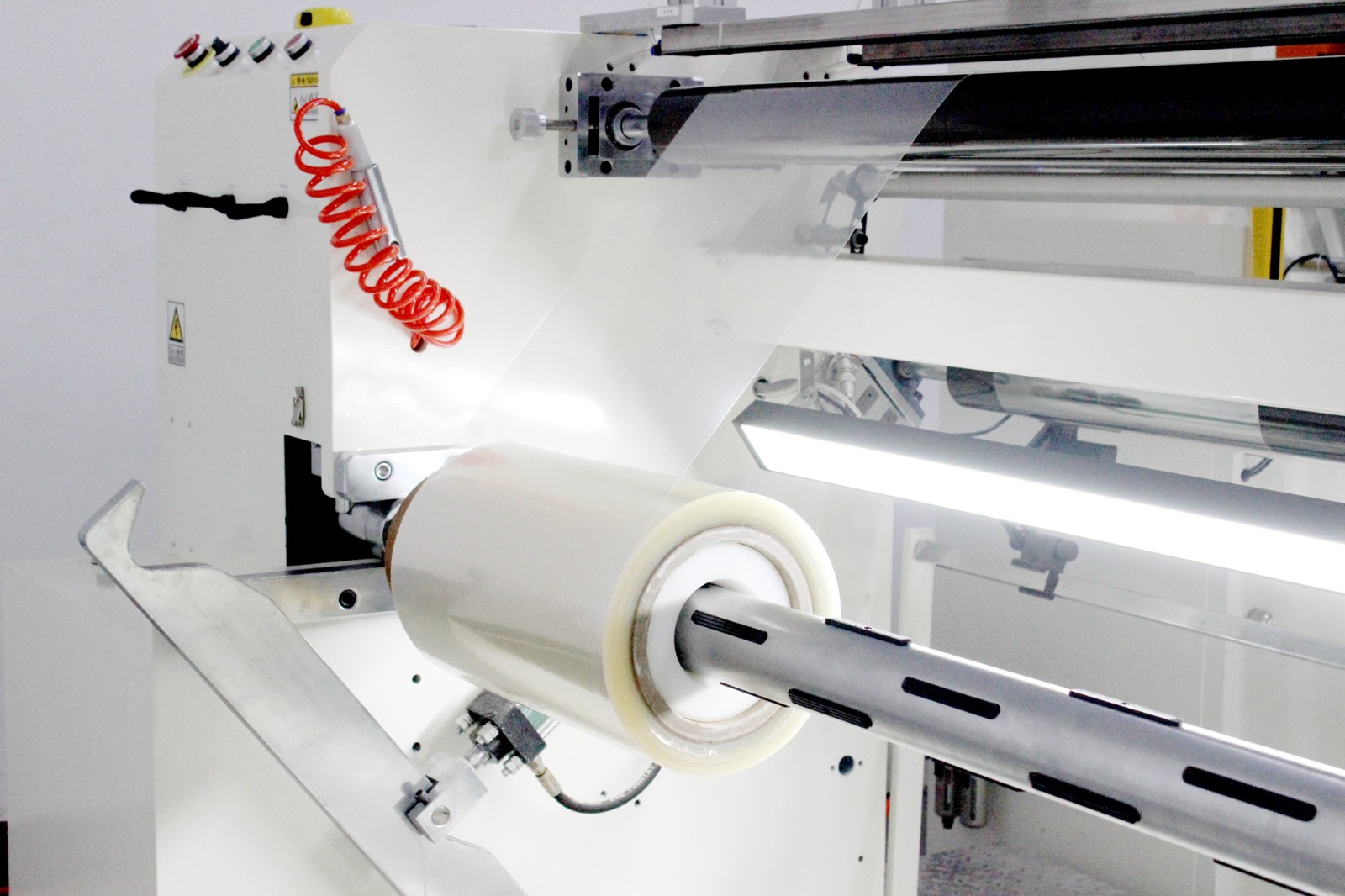

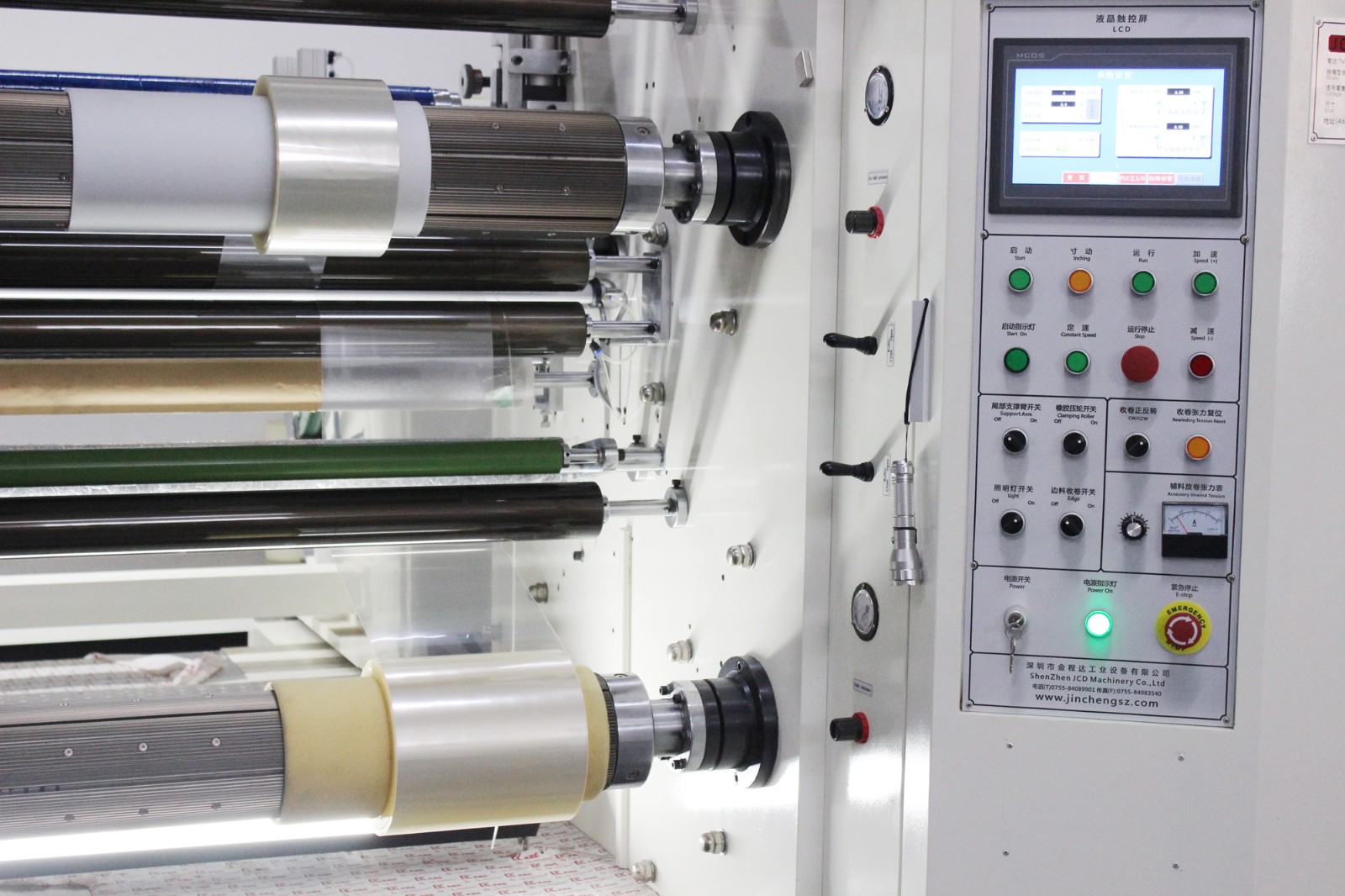

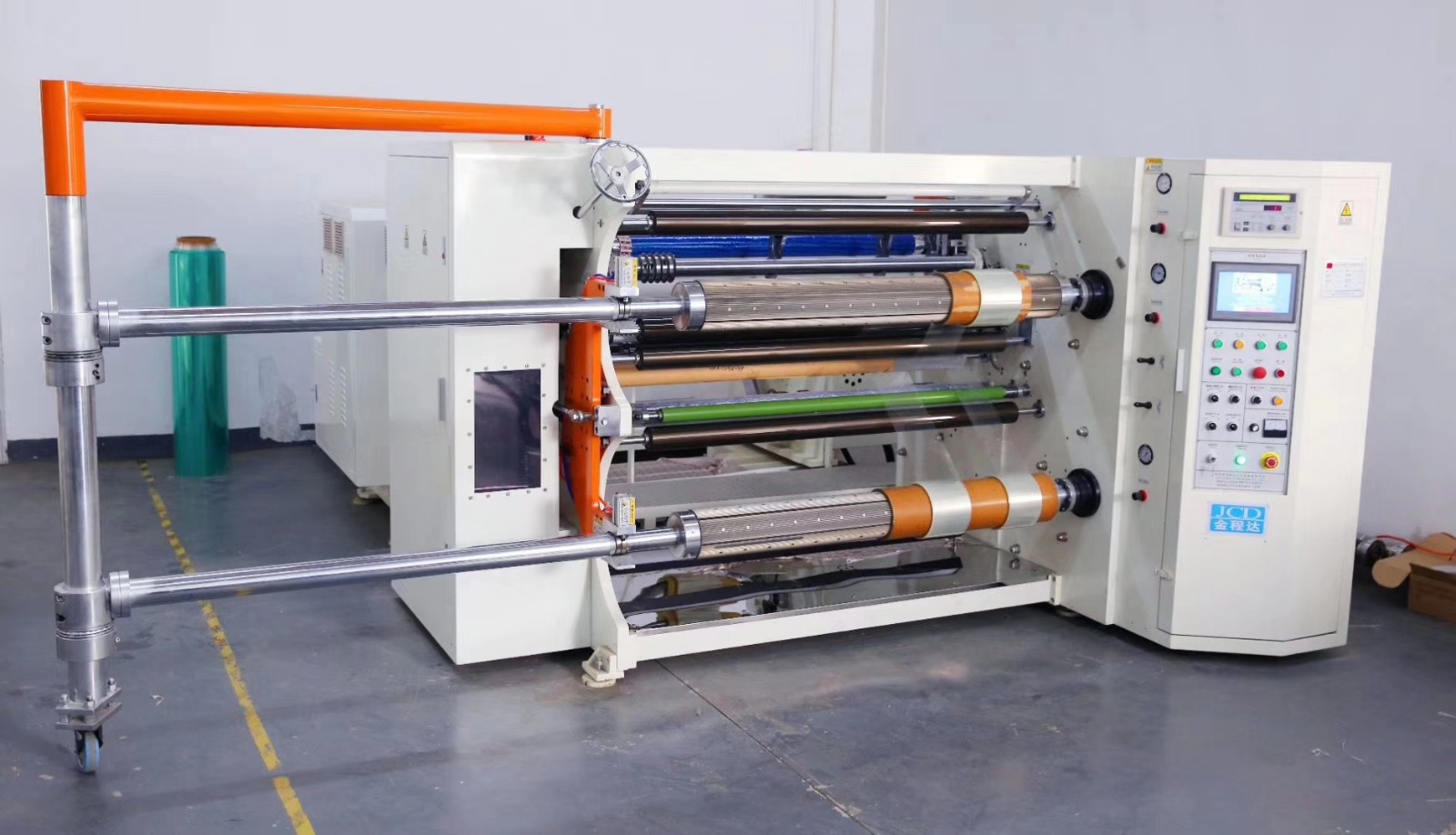

JC-S03A OCA protective film laminating slitting machine
This machine is suitable for laminating and slitting (rewinding)kinds of protective film, released film, paper and adhesive tapes.
Such as the OCA film, ITO film, PET film, diffusion film,reflecting film, hard coated film, AB gule etc.
Machine can finish multiple process at one time: Double sides laminating, peeling, slitting and rewinding.
Laminating no warping, slitting no scratch, high precision ±0.1mm.
Hot laminating system for optional according to the material process requirement.
Full automatic tension control.
This machine with reliable operation, keep the high precision for finished roll.
| Model | JC-S03A |
| Valid width | 1300mm / 1600mm |
| Max.unwind diameter | 800mm |
| Max.rewind diameter | 500mm |
| Min.slitting width | 30mm |
| I.D of paper core | 3'' / 6'' |

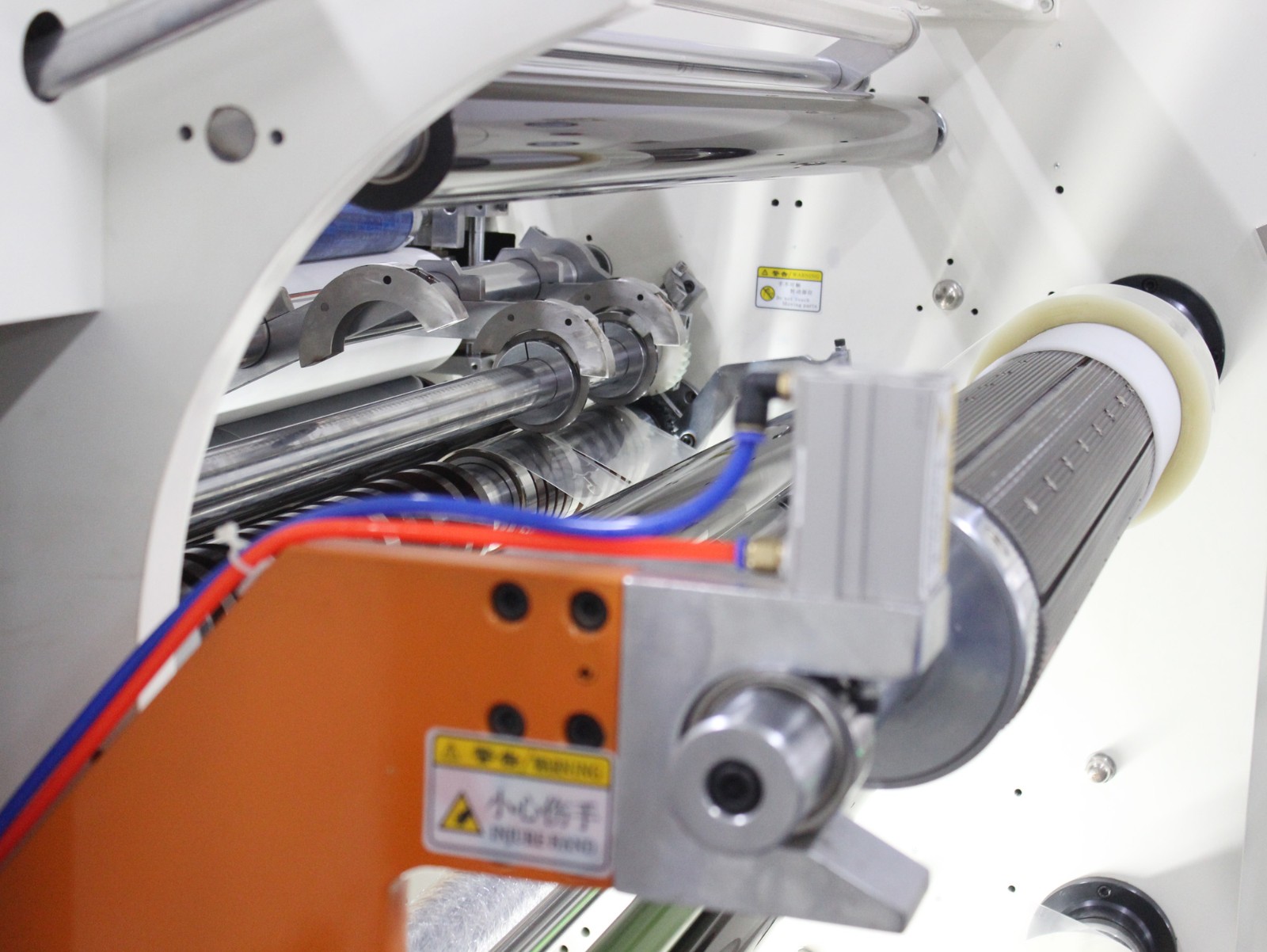

| Slitting knife | Round knife / straight knife |
| Rewind speed | 0-100 m/min |
| Machine size (1300mm width for reference) | 4040*1850*1650mm |
| G.W | 2500KG |
| Voltage | 3 phase 380V/50HZ |
| Power | 15 HP |
| Air | 6kg/cm2 |
