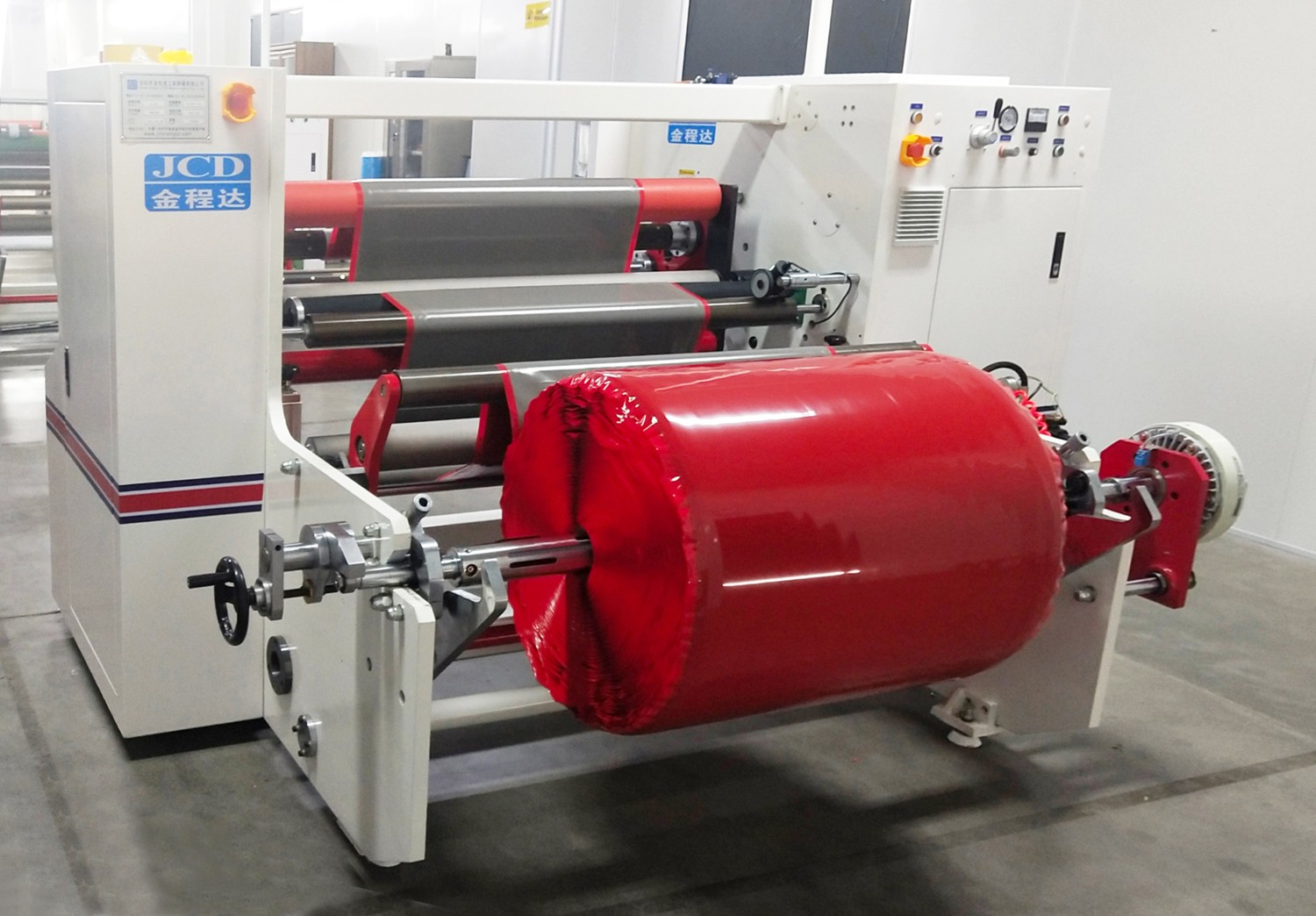

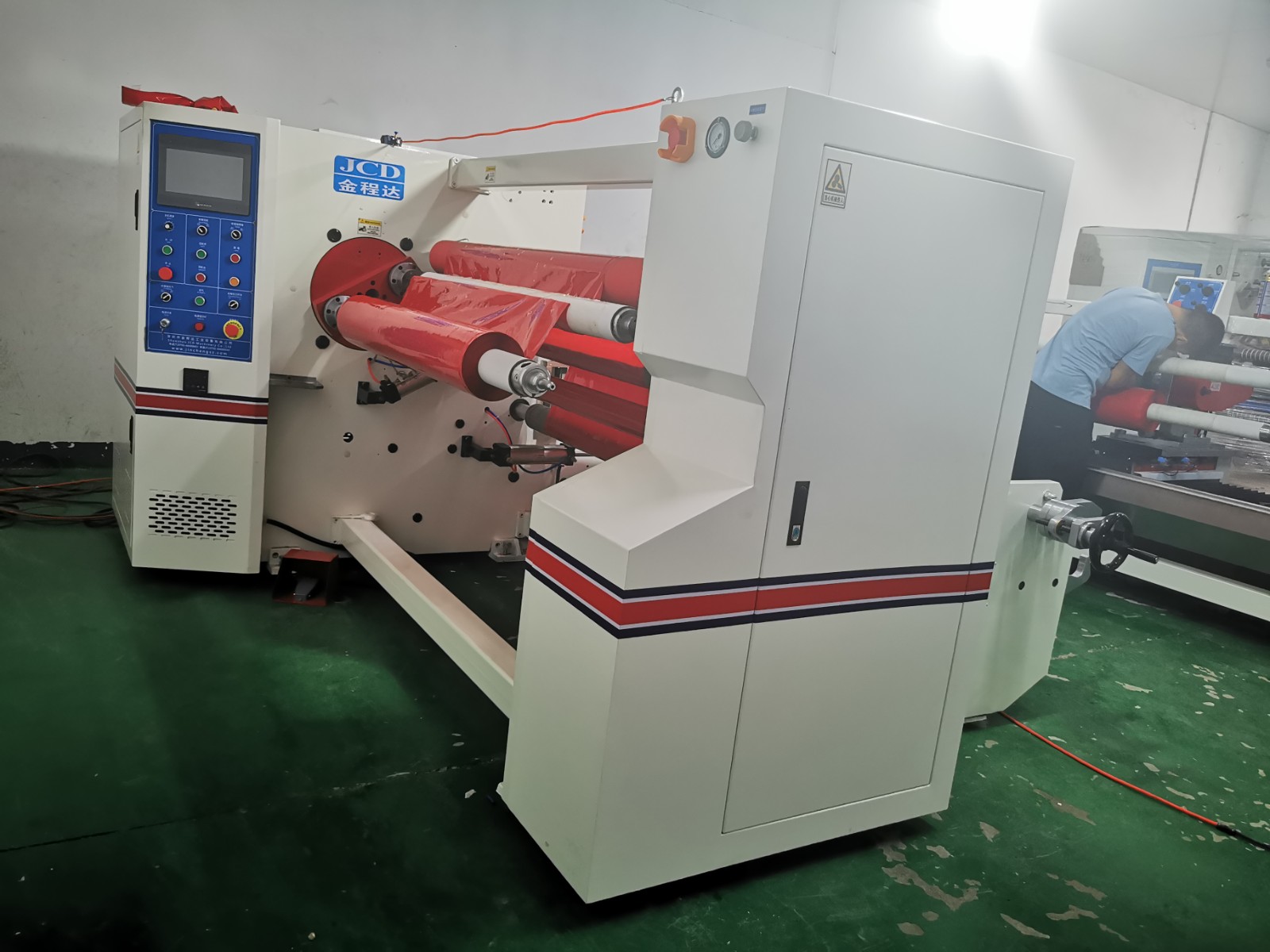

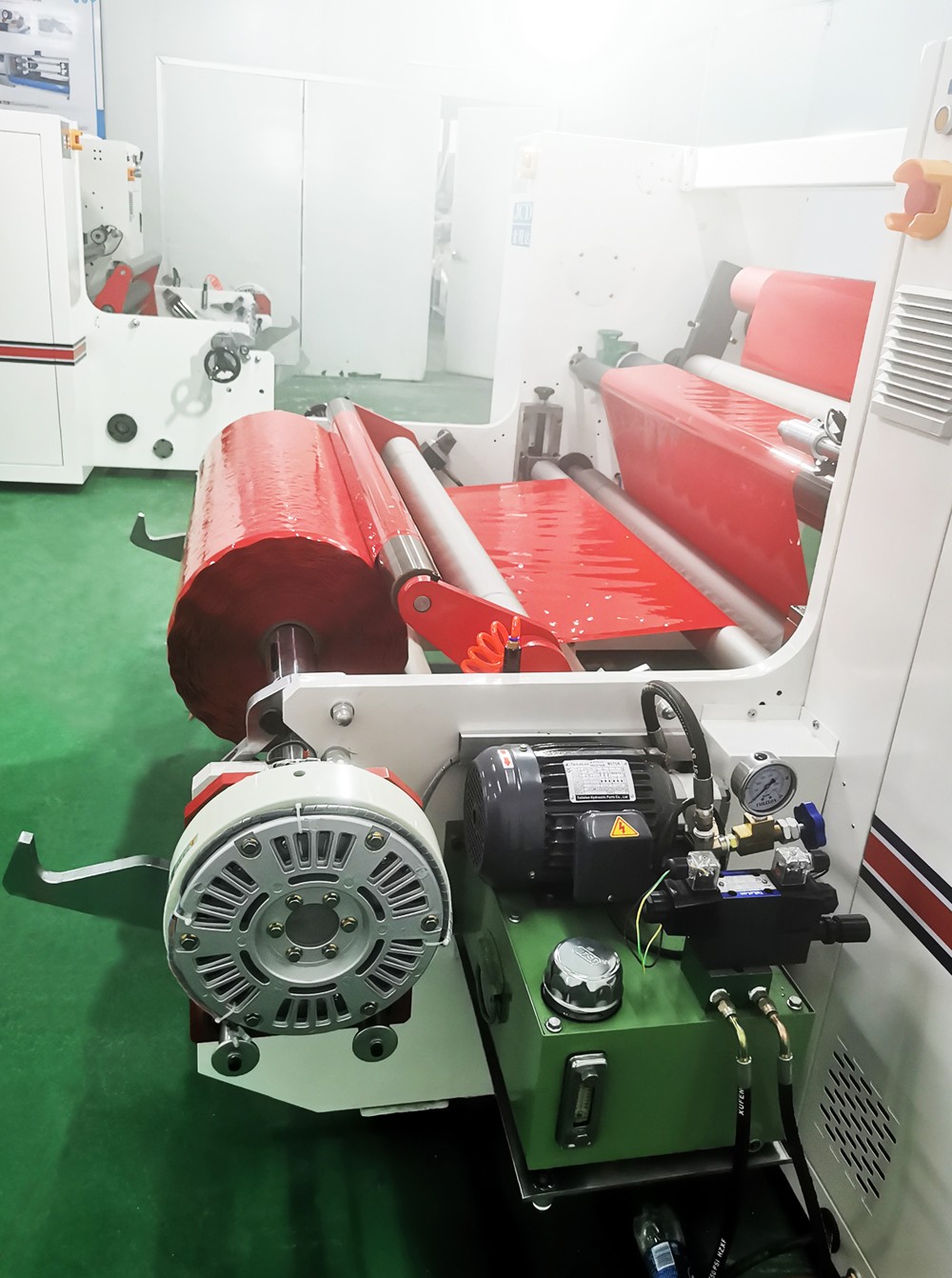

JC-R03 Double shafts jumbo roll rewinding machine
FUNCTIONS:
This machine is suitable for rewinding kinds of adhesive tapes from jumbo roll to log roll.
Such as masking tape, bopp tape, double sides tape etc.
MAIN TECHNICAL PARAMETERS :
| Rewinding width | 1300mm/ 1600mm |
| Max. unwind diameter | 800mm |
| Max. rewind diameter | 300mm |
| I.D of paper core | 3''/6'' |
| Voltage | 3 phase 380V / 50HZ |
| Power | 10 HP |
