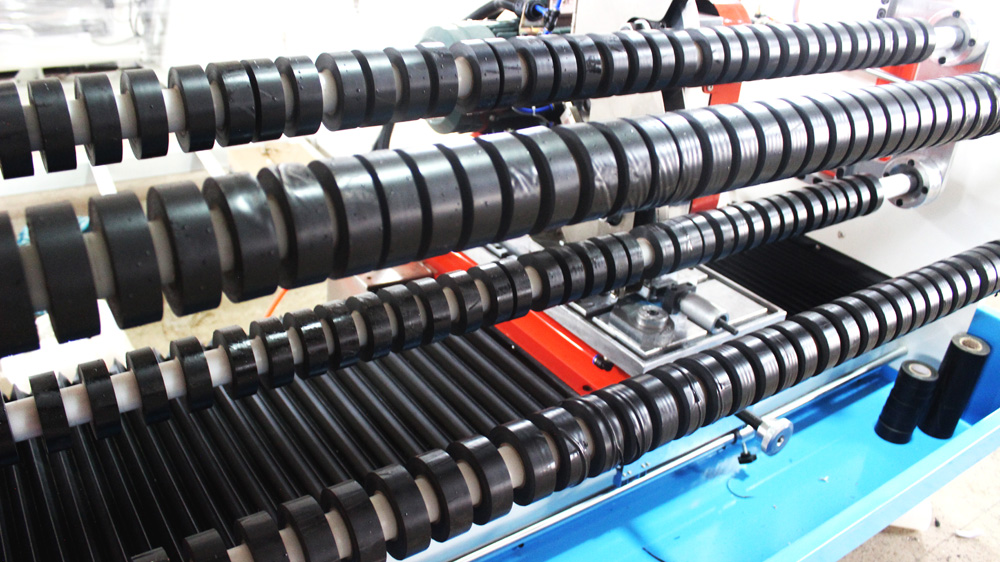

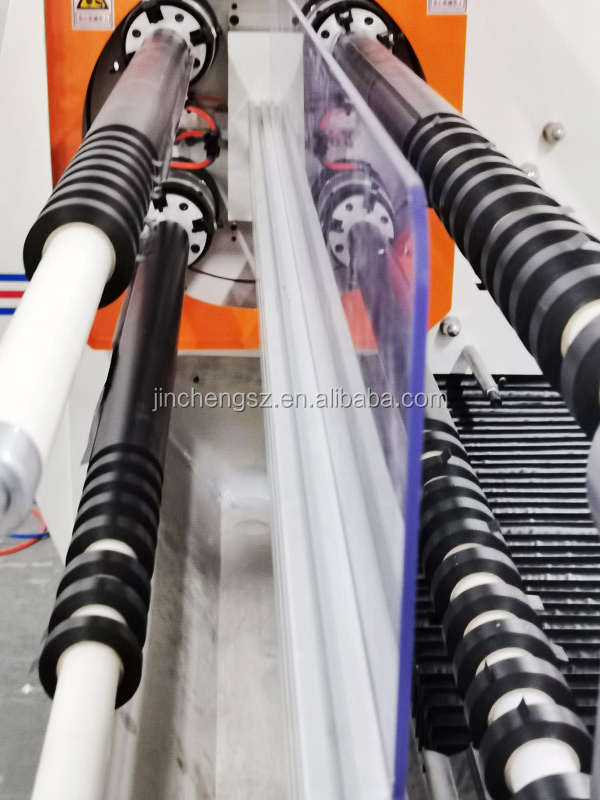

JC-C04 Automatic four shafts bopp tape roll cutting machine



  • Function

This machine is suitable for cutting kinds of adhesive tape, such as masking tape, bopp tape, medical tape, VHB tape etc.
And some kinds of coated paper and PE protective film.



  • FEATURES :

1. Main driving system:   AC motor and inverter controlling.

Make sure the speed-up or speed-down fast and steady during cutting.


2. Central control unit: The programmable central control system.

You can get multiple different cutting sizes for same log roll.


3. Operating panel:  The 10'' size big LCD panel.

You can set up various cutting model and monitor the cutting job directly in the panel.


4. Motor control system:  The PLC programmable controller.

Can be adjusted cutting size according to the set up cutting width and cutting roll quantity.


5. Cutting size positioning system: The Mitsubishi servo motor control.

Make sure the high accuracy of the ball screw and the linear slide rail positioning in the cutting.


6. Feed positioning system: The Mitsubishi servo motor to control the knife feeding.

It can be anthropomorphized as a three-step feeding speed of the cutter.
Improve efficiency and get the best quality.


7. Round knife Angle adjustment system: The Mitsubishi servo motor control to calculate the circular knife Angle.

According to different materials to do different angles change (adjustment range: + / -8 °  ) .

If the cutting surface is not good, you can change the cutting angle according.

That will increase the production efficiency.


8. Automatic roll changing system:  The cylinder drive positioning gear to drive the active spline.

Make sure the fast and accurate change of log roll but without stopping during cutting,
Save the loading and unloading time and increase the productivity.


9.Fast cutting shaft changing system:   Different sizes cutting shafts for optional from 1'' to 3''.

You can cutting different size paper core / plastic core log roll by the fast shaft changing device.



  • MAIN TECHNICAL PARAMETERS:

Vaild  width    1.3M/1.6M
Max. cutting diameter180mm
Min. cutting width1mm
I.D of paper core   25mm-76mm (1''-3'')
Diameter of cutting blade200mm  / 250mm
Air pressure6kg/Cm2
Power10HP
Voltage3 phase 380V/50HZ
